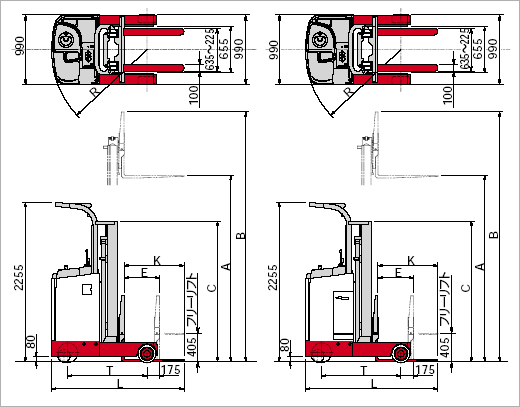

Item Summary Unit NICHYU
1.2 Model     FBRF14 FBRF16 FBRF20
1.3 Rated caoacity with integral sudesgufter Q kg 1400 1600 2000
1.4 Load center with integral sudesgufter C mm 600 600 600
1.5 motor type     AC AC AC
1.6 Operator type Stabd-on / Seated   Seated Seated Seated
2.1 Lift height H3+s mm 6500 6500 6500
2.2 Free lift H2+s mm 1915 1915 1925
2.3 Tilt angle For-/Back-ward<F:Down/Up> α/β deg. <fork>2/5 <fork>2/5 <fork>2/5
2.4 Fork Finger bar   Hook type Hook type Hook type
2.5 Dimensions(L/W/T) l/b/s mm 1070/100/35 1070/122/40 1070/122/40
2.6 Spread(Max/Min) B5 mm 715/200 737/292 737/292
2.7 Length OA. length L1 mm 2280 2280 2360
2.8 Frame L7 mm 1730 1830 1890
2.9 to Fork face L2 mm 1210 1210 1290
2.10 Reach stroke L4 mm 555 655 625
2.11 Width OA width B mm 1270 1270 1334
2.12 Between legs b4 mm 932 932 915
2.13 Frame b2 mm 1270 1270 1270
2.14 Height Leg h8 mm 275 275 291
2.15 Mast Lowered H1 mm 2815 2815 2825
2.16 Mast Extended H4 mm 7400 7400 7400
2.17 Overhead guard H6 mm 2160 2160 2190
2.18 Overhang Reach out mm 180 180 180
2.19 Min.turning radius Wa mm 1610 1705 1755
2.20 Min. 90ºturninf aisle W800XL1200 Pallet mm 1825 1870 1920
W1200XL1200 Pallet mm 1825 1870 1920
2.21 Min. 90ºturninf aisle W800XL1200 Pallet mm 2520 2535 2610
W1200XL1200 Pallet mm 2630 2645 2720
3.1 Travel speed Laden/Unladen km/h 12/12 12/12 12/12
3.3 Lifting speed Laden/Unladen mm/s 370/560 370//560 300/460
3.4 Lowering speed Laden/Unladen mm/s 500/400 500/400 500/400
3.5 Reach speed Laden/Unladen mm/s 150/200 150/200 150/200
3.6 Gradeability   % 10/15 10/15 10/15
4.1 Service weight W/O Battery kg 2400 2450 2800
4.2 Axle loading Reach-in Laden (Load/Drive) kg 2550/1250 2690/1360 3320/1480
4.3 Unladen (Load/Drive) kg 920/1480 955/1495 1115/1685
4.4 Reach-out Laden (Load/Drive) kg 3040/760 3260/790 3880/920
4.5 Unladen (Load/Drive) kg 1410/990 1520/930 1675/1125
5.1 Tyres:Number Load/Drive/Caster   2/1/- 2/1/- 2/1/-
5.2 Tyres Load mm φ254X114(solid) φ254X114(solid φ267X135(solid
5.3 Drive mm φ330X145(Urethane) φ330X145(Urethane) φ380X165(Urethane)
5.4 Caster mm - - -
5.5 Wheelbase y mm 1350 1450 1500
5.6 Tread Load mm 1156 1156 1199
5.7 Deive mm 0 0 0
5.8 Ground clearance Middle of wheelase F mm 70 70 80
5.9 Service brake Mech./Hydr./Electr./Pneum.   Electr. Electr. Electr.
5.10 Parking brake Foot/Hand/Deadman   Deadman Deadman Deadman
6.1 Battery Type   DIN C*2) DIN C*2) DIN C*2)
6.2 Volts/Ampere hrs (5HR) V/Ah 48/370_450 48/370_450 48/480_550
6.3 Mass (With case) kg 750 750 940
6.4 Drive motor 60min. rating kw 6.0 6.0 7.0

6.5

 control   Inverter Inverter Inverter
6.6 Hydraulic motor 5min. rating kw 12.0 12.0 12.0
6.7 control   Inverter Inverter Inverter
6.8 Power steering motor 60min. rating kw 0.55 0.55 0.55
6.9 control   Chopper Chopper Chopper
6.10 Charger Typr (built-in/Stationary)   Stationary Stationary Stationary
  7.1 Operating pressure for Attachments MPa 15.7 17.2 17.2
